Introduction on Technical Process

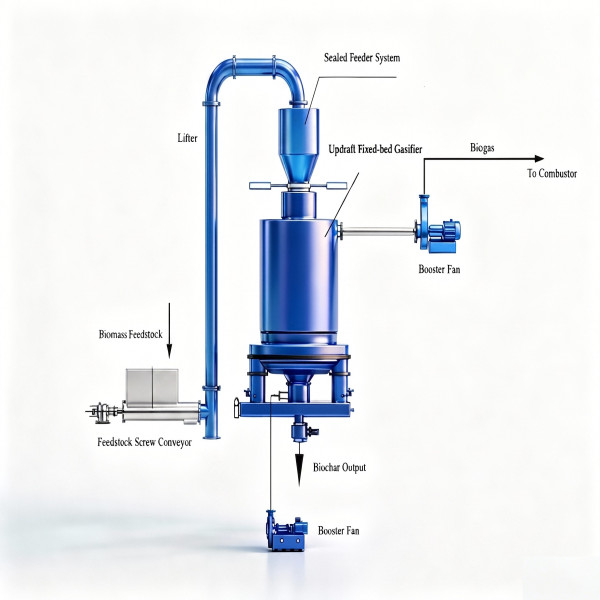

The biomass feedstock is sent to the gaisfier intermittently through the feeder system to have pyrolysis and gasification reaction witht he air enterting from the bottom. The energy generated can help maintain the stable reaction within the gasifier and turn the feedstock into biogas and biochar in an efficient way. The biogas will be sent from the top of the gasifier to the combustor for heat supply, while the biochar will be discharged through the tower-shape grate before being collected through the water-cooling screw conveyor.

Main Parameters

Feedstock input: ≤10t/h

Syngas output: ≤16,000Nm3/h

Max. saturated steam output of single unit: 25t/h

Max. power generation of single unit: 5.5MW

Biochar output ratio: 10~15%

Feedstock Applicable

Palm EFB/straw briquette, wood and bamboo chips, etc.

Particle size: 3~8cm

Moisture: ≤40%

Conversion Ratio

Feedstock conversion ratio: ≥90%

Application

Alternative to natural gas, coal and other fossil fuels to supply steam, heat and power for energy-using enterprises such as chemical plant, printing and dyeing mill, package plant, wood-working factory, smelting plant and foodstuffs factory; the biochar can be made into high-value products like activated carbon, machine-made carbon, carbon-based fertilizer, thermal insulation material, and capacitor carbon/silicon-carbon black
